QR Code and NFC Payment Panel with 8 Inches Touch Screen
Model: PPC-iMX6UL-0801
Recommended Products: Facial Recognition Payment Panel based on Rockchip RK3288 CPU, Smart QR Code Payment Panel for Shopping and Restaurants
Description:
The 8 inches payment terminal is designed with NXP i.MX6UL CPU, 256MB RAM and 4G eMMC. The terminal allows customer to order and pay in restaurant and shops, moving their lines faster by accepting Apple Pay, Google Pay, Alipay and other NFC payments. Customers simply hold their mobile phones near the terminal to trigger payment. The device features compact size, wall mountable design and low power consumption.
Main Features:
• NXP i.MX6UL 528Mhz CPU with ultra low power consumption
• NFC and QR code supported
• 8 inches 1280 x 720 capacitive touch panel, wall mountable
• 4G, BT and wifi supported

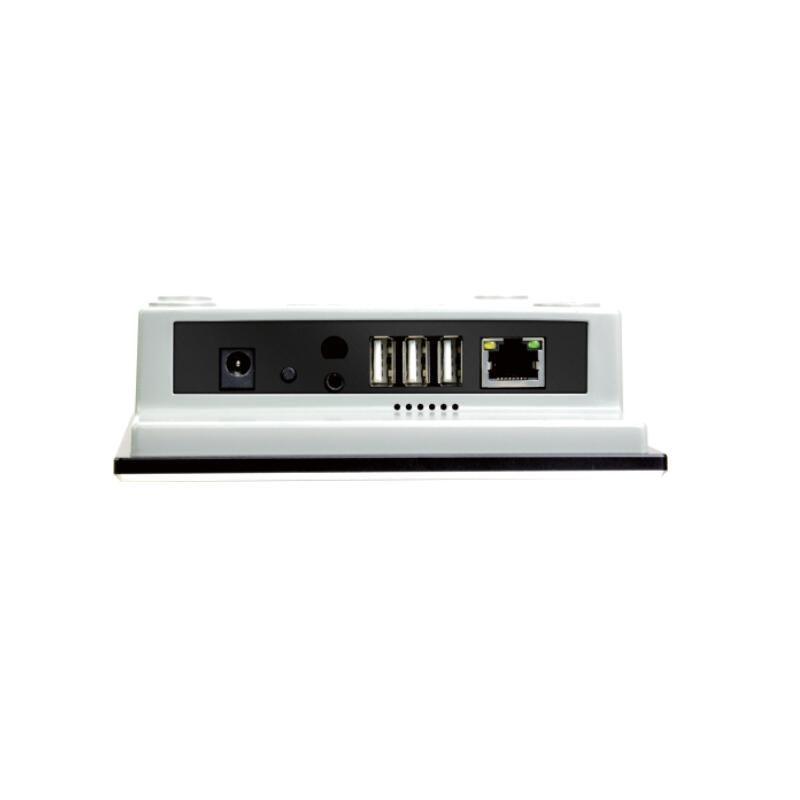

• 3 x USB 2.0, 1 x RJ45 Ethernet

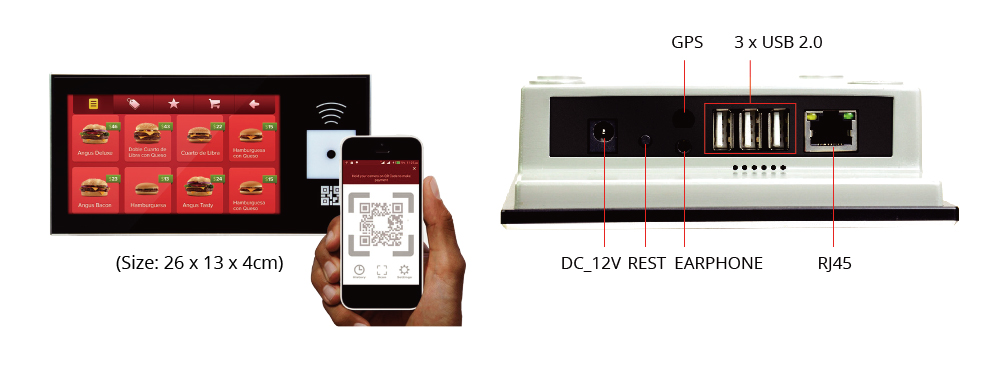

• Size: 26 x 13 x 4cm
| System | |
| CPU | NXP i.MX 6UltraLite ARM Cortex®-A7 CPU, i.MX 6ULL (optional) |
| RAM | Onboard 256MB DDR3 RAM (128MB/512MB optional) |
| Storage | Onboard 4GB eMMC (8GB/16GB/32GB optional) |
| Operating System | Buildroot 2019.02.4, Yocto 2.5.2 |
| Display & Touch Panel | |
| Display | 8 inches LCD display, Res. 1280 x 720 (16:9) |
| Touch Panel | Capacitive touch panel |
| Functions | |
| Network | Wifi, BT4.0, 4G, GPS + Beidou supported |
| Expanded Functions | NFC module and QR code module |
| 1 x 1W speaker, 1 x earphone port | |
| 2 x USB 2.0 HOST, 1 x USB 2.0 OTG | |
| 1 x RTC, 1 x UART | |
| Power | |
| Power Supply | DC12V-2A or 3.7V 10000mAh battery optional |
NXP i.MX6UL 528Mhz CPU with Ultra low power consumption
Support Buildroot 2019.02.4, Yocto 2.5.2 operating system
128MB-512MB DDR3 RAM, 4GB-32GB eMMC storage
