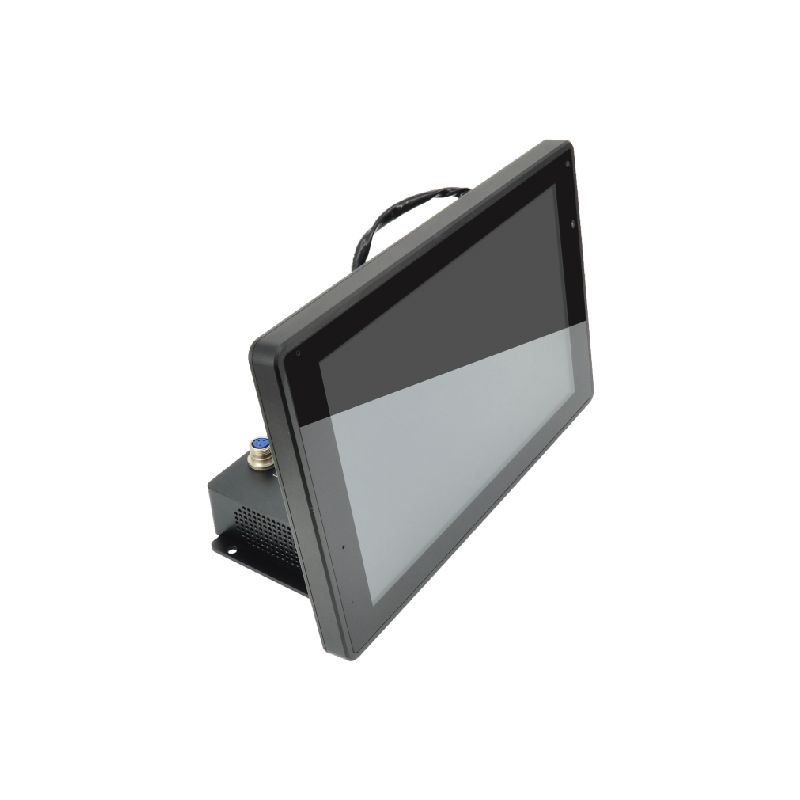

10.1 Inches Locomotive Panel Based on NXP i.MX 8M Mini CPU
Model: PPC-iMX8MM-1001
· i.MX 8M Mini CPU, 4 x Cortex-A53 core + 1 x Cortex-M4 core processor
· Supports Android 10.0 operating system
· Equipped with 3 x digital silicon microphones, 2 x 8W loud speakers, 1 x ambient light sensor and 1 x camera
· With 4G module, 2 x RS485 outputs, 1 x CAN output, USB A and USB-TypeC interfaces
· Adapt to DC 72~144V high voltage input of locomotive with 12V output interface
| System | |
| CPU | MIMX8MM6CVTKZAA: Quad Cortex®-A53, 1.6GHz |
| (Support Consumer&Industrial i.MX8M Mini SoloLite/Solo/DualLite/Dual/QuadLite/Quad) | |
| Memory | Onboard 4GB LPDDR 4, Support 2GB (Operating Temp. -20℃~70℃) |
| Flash | 32GB eMMC5.1, Support 8GB/16GB/64GB/128GB (Operating Temp. -20℃~70℃) |
| OS | Android 10.0 |
| Display & Touch Panel | |
| Display | 10.1" Screen (BOE), 600 nit, 1280 x 800p |
| TP | Multi Touch Capacitive Touch Panel |
| Speaker | 2W Speaker with waterproof sound transmission membrane (directly installed) |
| MIC | Built-in primary and secondary MIC with echo noise canceling |
| Light Sensor | Automatic brightness control function |
| Panel Size | 268.5 x 173.5mm |
| Communication | |
| WIFI & BT | WIFI-2.4GHz/5GHz (Built-in wifi IEEE802.11a/b/g/n) , BT4.0 |
| 4G | Full Netcom 4G module |
| BD/GPS | Support |

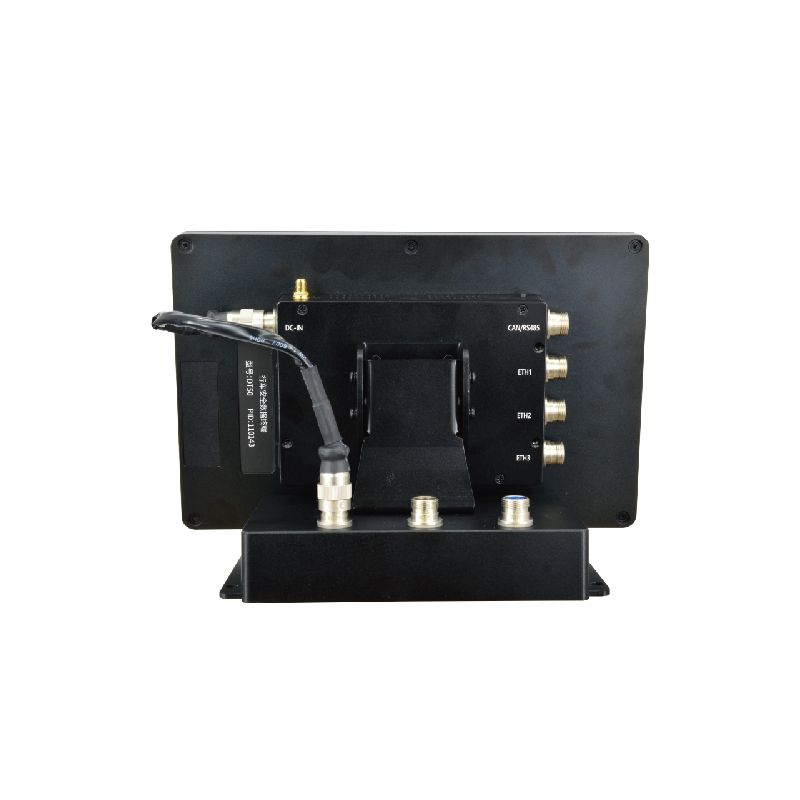

| I/O Interfaces | |
| Power & Audio Interfaces | Power input + Audio differential output |
| TF Card | Installed on the panel, up to 128GB |
| SIM Card | Installed on the panel |
| USB | 1 x USB Type-A, 1 x USB Type-C |
| 100M LAN Ports | 1 x 100M LAN, 2 x 100M LAN with 12V/GND output |
| RS485/CAN | 2 x RS485 + 1 x CAN |
| Reset Button | Non self-locking reset button |
| Connectors | Connectors (processed by Chloroprene Adhesive), FPC connectors (reinforced by ACETATE) |
| Camera | |
| Pixels | Front camera, >200W pixels |
| Focusing | Automatic focusing |
| Charging Dock | |
| Power Input | 1 x Power Input (DC72~144V) |
| Power Output | 2 x Power Output (Each one 12V/1.5A) |
| Panel Connection Interfaces | Power Output + Audio Differential Input (connected with panel) |
| Battery | Built-in lithium cell for 10-min operation |
| Speaker | 2 x Built-in speakers (8Ω 5W, waterproof sound transmission membrane) |
i.MX 8M Mini CPU, 4 x Cortex-A53 core + 1 x Cortex-M4 core processor
Supports Android 10.0 operating system
Onboard 2GB~4GB LPDDR4, 8GB~128GB eMMC5.1
